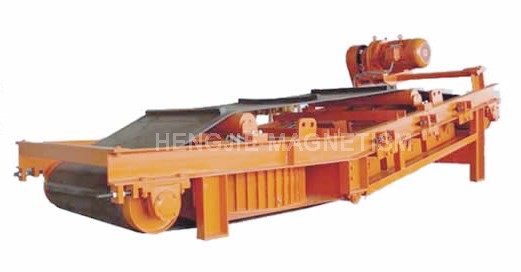

The HTK series magnetic ore separator applies to separate iron for the original ore, sinter ore, pellets ore and lump. The HTK separator relies on its unique magnetic circuit design to separate ferromagnetic debris with the least amount of original ore from the magnetic materials, purpose for protection the follow-crushing equipment .
Product Features:
  1, the magnetic circuit using computer simulation design, high the penetration magnetic field, high the magnetic field strength.
  2, in conjunction with the metal detector, composed of automatic detection of iron removal system,no leave the iron phenomenon.
  3.Intermittent exciting power, low energy consumption, stable and reliable performance.
  4, separate using multi-level repeated magnetic separation, purpose for obiter the least original ore.
  5, automatic unloading iron, simple to maintain,drum-type structure to automatic correction belt, a special fully sealed bearing to adapt to the occasion with a large on-site dust, can achieve long-term trouble-free operation.
  6,Products have manual and centralized control function to meet the requirements of the variety of occasions.

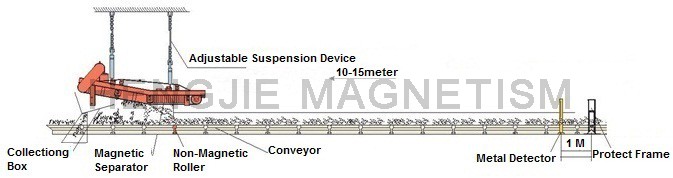

Installation Diagram:

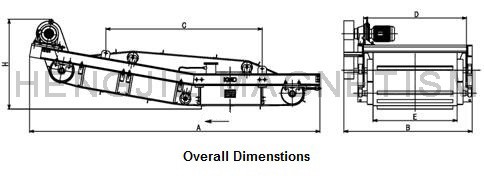

Dimensional sketches:

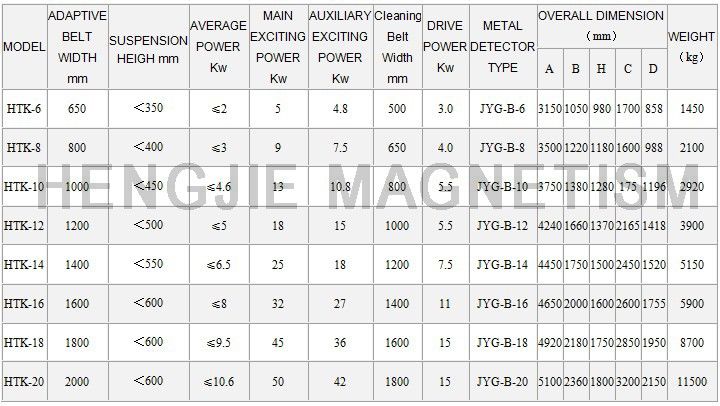

Parameter table:
