Three-roll crusher is suitable for crushing operation of the hard and soft materials that compressive strength less than 260Mpa, humidity less than 10%, such as:various minerals, fertilizers, coke, coal, cement clinker, ceramic materials, slag, gypsum , salt, chemicals, etc.,This machine has a special characteristics of maintenance costs low, big crushing ratio, reliable performance, low dust, low noise.
Three roll crusher introduction:
Three-roll crusher applicable to the crushing requirements that product size 10mm to 100 mesh, such as: thermoelectric industry Broken Limestone; crushing fertilizer raw materials or coarse particle in fertilizer industries; broken feldspar, albite in ceramic industry; broken cement clinker, slag, coal, in cement industry; manufacturing quartz sand in quartz industry; manufacturing iron powder in iron ore industry; broken chemical raw materials in chemical industry, and so on. Three-roll crusher configuration of three crushing rollers, according to crushing granularity requirement, there are three roll surface of surfacing roll surface and flat roll surface for any combination.
According to user requirements there are the belt drive and coupling drive (hard links). This drive motor can be refited to diesel or gasoline machine according to user requirements.
How to work?
Three roll crusher crush material by high pressing force generated three high strength wear-resistant roll relative rotation, after material into the crushing chamber between upper two rollers, the materials are squeezed and ground (coarse broken) by the pressing force generated upper two rollers relative rotation,then the material immediately into the under two rollers (share one crushing roller with upper two rolls), the materials are second squeezed and ground (fine broken), broken to the desired size and then sent by conveyor.

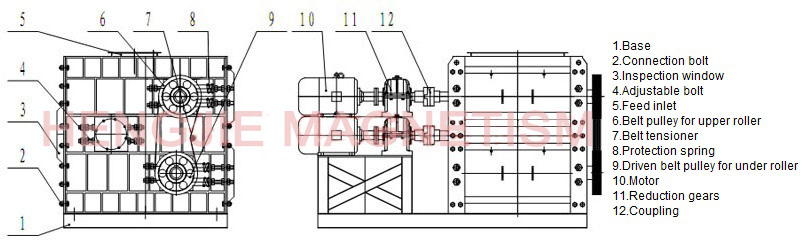

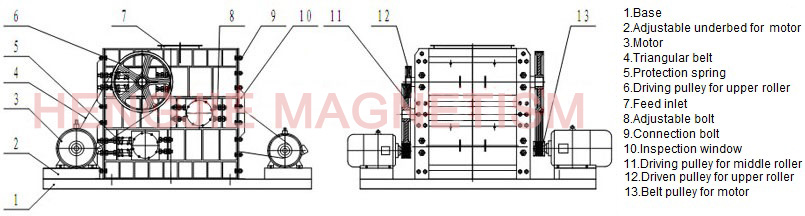

Structural drawing:

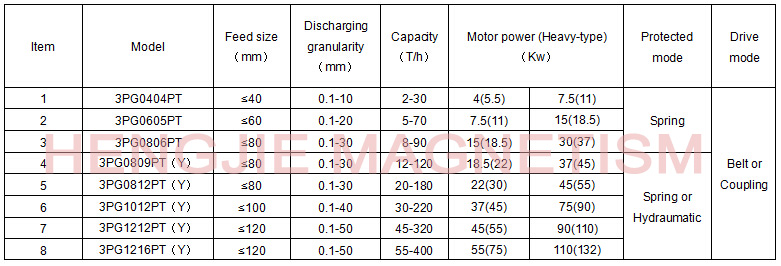

Technical parameters table:
1, Model naming (in 3PG0806PT example): 3 indicate three rolls, P indicate crusher, G indicate roller type, 08 indicate rolls diameter (800mm), 06 indicate rolls width (600mm), P indicate flat roll(surfacing), T(Y) indicate spring protection (hydraulic protection). 2, In parameter table, the discharging granularity range indicate size can be adjusted. |
