Products  The current position:Home - Products - Lifting Electromagnets

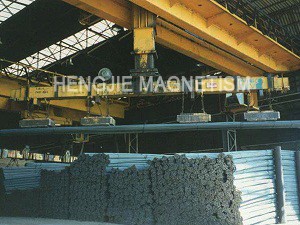

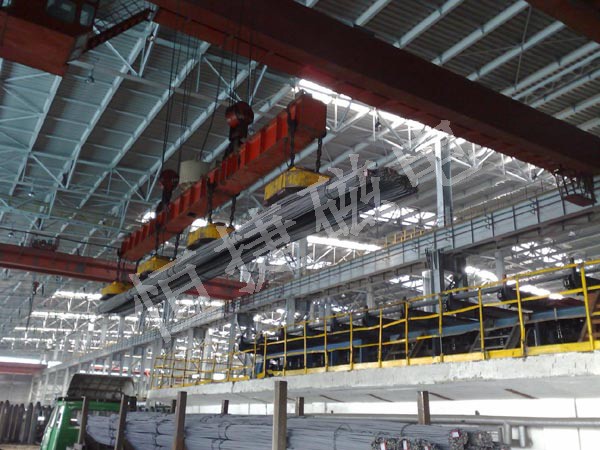

MW12 series use for handling bundled steel bars/steel bar bunches.
Features and Benefits
- strong permeability for bar bunches
- high capacity
General Parameter
Dury Cycle: TD-60%
Conductor coil: aluminum or copper
Weight kg: 1450~2500
Current A: 32~50
Power kw: 7~10.6
Capacity (4 units combined) t: 6~12
Overall Dimension Diagram:

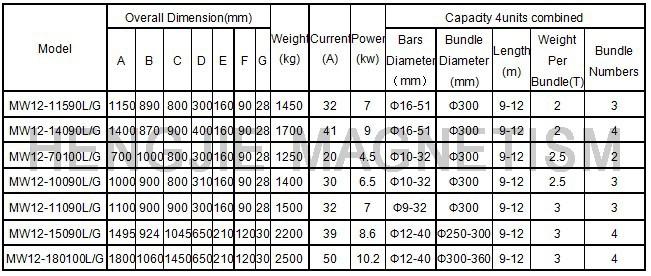

Technical Parameter Table:
