MW16,MW26,MW36 use for handling coiled steel strip (special for new annealed roll plate) Three Types: A. Vertical lifting & transporting (by holding upper face) B. Horizontal lifting & transporting (by holding side face) C. Dual-use type ( handling both vertically and horizontally) Options: -Normal Temperature Type (Cold Operation) -High Temperature Type (Hot Operation <700 Deg.C )

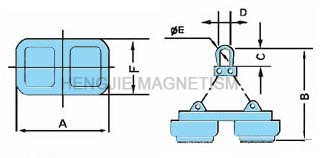

MW16 Overall Dimension Diagram:
![](../uploadfile/20140220/20140220100237517.jpg)

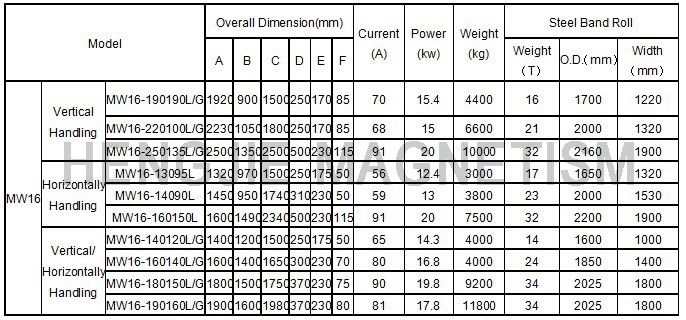

MW16 Technical Parameter Table:
![](../uploadfile/20140220/20140220100336303.jpg)

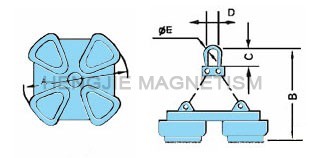

MW26 Overall Dimension Diagram:
![](../uploadfile/20140220/20140220100427783.jpg)

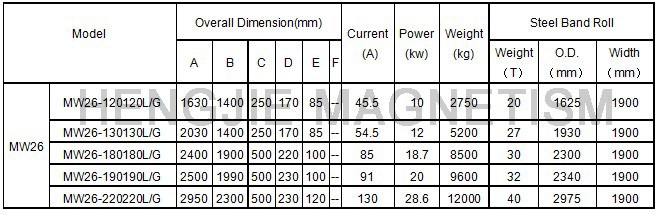

MW26 Technical Parameter Table:
![](../uploadfile/20140220/20140220100732835.jpg)

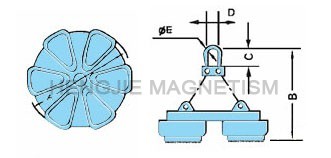

MW36 Overall Dimension Diagram:
![](../uploadfile/20140220/20140220100834645.jpg)

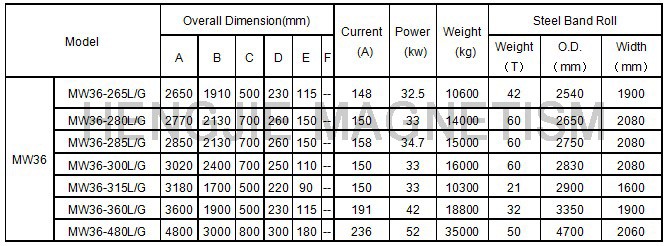

MW36 Technical Parameter Table:
![](../uploadfile/20140220/20140220100927703.jpg)
![](../uploadfile/20140220/20140220101023174.jpg)
|
