Products  The current position:Home - Products - Permanent Magnetic Separators


 RCYB series suspended permanent magnetic separators are designed by advanced computer simulation, it have the perfect double-pole structure so that effectively guaranteeing the maximum adsorption capacity of iron debris within the working distance, internal magnetic material is made by high-strength rare earth neodymium,NdFeB is high purity, high magnetic intensity,this equipment can easily pick up the iron debris. Has maintenance-free, long life, easy to install, easy to use, reliable operation and other characteristics, suitable for belt conveyor, vibrating conveyor, electromagnetic vibrating feeder, non-magnetic materials chute, adsorptive capacity from 0.1 to 35 kg of ferromagnetic material, internal permanent magnet system life is more 10 years, the whole optimization design, the inner core is  perfused by resin, good sealing, oxidation protection, the consumption for magnetic force does not exceed 4% within 10 years. the technical indicators meet the JB/T8711-2006 standard.
Product Features:
  * Magnetic circuit is designed by computer simulation, high performance, the magnetic field strength high.
  * High-performance NdFeB material is magnetic source, high coercivity, demagnetization not exceed 4% within ten years.
  * Energy saving, trouble-free operation in harsh environments.
  * Small size, light weight, easy to install.

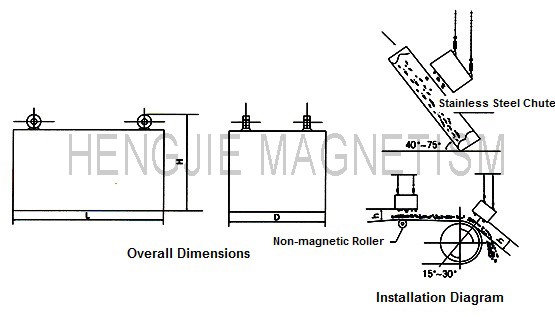

Dimensional sketches and installation sketches:

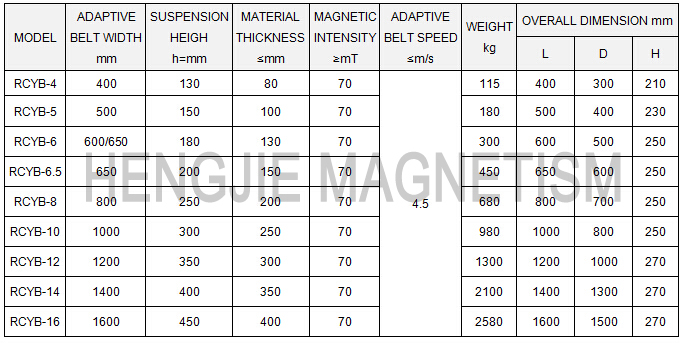

Parameter table:

This suspended permanent magnetic separator have high intensity model: T1 magnetic strength is 90mT, T2 magnetic strength is 120mT ,T3 magnetic strength is 150mT.
