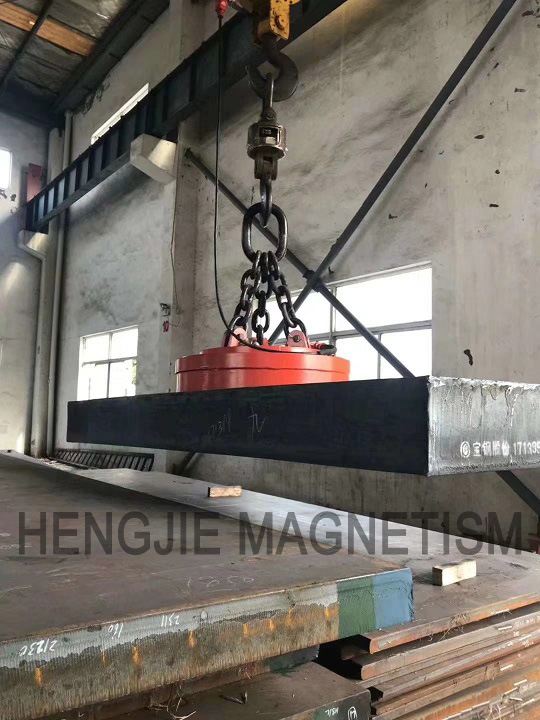

MW5 series lifting electromagnet is suitable for transferring cast ingots, steel balls and various kinds of steel scraps.
Functions:
  Handling casting ingots, steel balls and other steel scraps.
Options:
A.Normal temperature lifter
B.High frequency lifter
C.High temperature lifter
General Specifications:
Conductor/Coil: Aluminum or Copper
Shape: Round, oval and/or square
Power: 3.3~33.9kw
lifting capacity (kG)
-steel ball: 2500~26000
-hot steel ingot: 200~3800
-cold steel ingot: 380~4800
-hot steel scraps: 100~2250
-cold steel scraps: 120~2850
Note:
Products in different configuration are available.

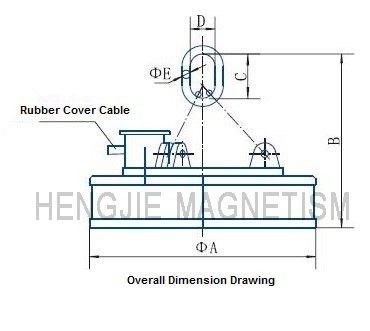

Overall Dimension Drawing:

Normal Temperature Type:

High Temperature Type:

High Frequency Type:
