Roller press is the most reliable solid material grinding equipment,It is suitable for compressive strength less than 300Mpa and humidity less than 30% of hard materials, can be widely used for cement, mining, metallurgy, ceramics industries and so on.
Roller press configure two solid grinding rollers, roller surface use surfacing roll surface, suitable for feed size less than 140mm, finished size less than 4mm crushing operation. Such as: pre-crushing cement clinker, limestone and composite materials before into mill in cement industry; pre-crushing slag, iron ore, silicon ore before into mill in iron ore industry; crushing all kinds of ores in backing-free brick plant or similar to the above crushing occasions.
Working principle:

Roller press is to rely on two opposite rotating rolls, the materials into the same sizes and relative rotation roll gap (V-type crushing chamber) by fabric device, through high pressure material layer crushing principle, after the material high-pressure extrusion (pressure to 150MPa), completely destroyed the interior crystal structure of the material, so that the material appear a large number of micro-cracks, and the material change mechanism, so as to achieve a dense cake and powder materials, the last fall between two roll, then sent by the conveyor.

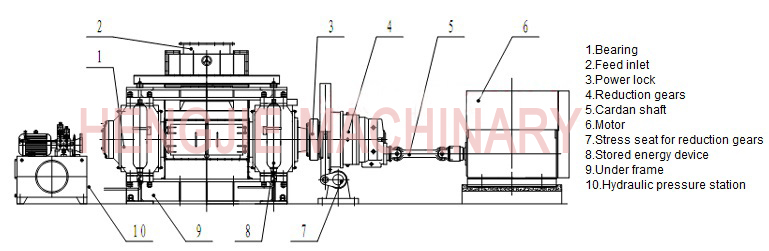

Structural diagram:

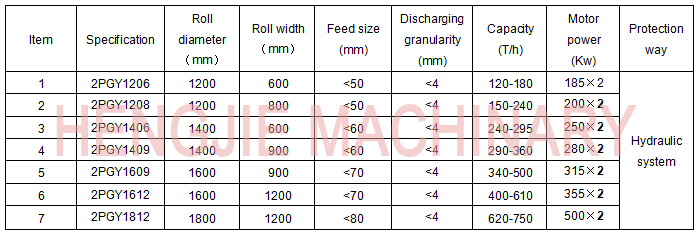

  Technical parameter table:
