Products  The current position:Home - Products - Magnetic Drum Separators

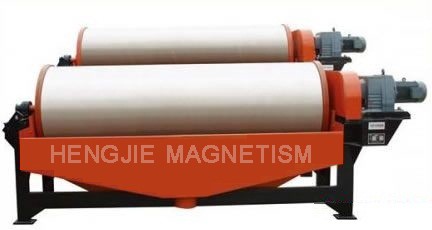

  2XCTN Series Double Drum Wet Permanent Magnetic Separator is designed specifically for coal preparation plant recovery magnetic media. The magnetic field distribution characteristics make for fine powder recovery, the Countercurrent tank suitable for pulp flows, magnetic mineral recovery rate is greatly (99.8%), the device have good adaptability for the material flow and other parameters change, widely used in heavy medium coal preparation plant. The devices using the magnetic force generated by the NdFeB of rare earth. the magnetic minerals in the slurry will be attracted to the drum surface, and together rotate with the drum, to be discharged by the scraper and gravity, non-magnetic materials excluded from the tailings outlet.

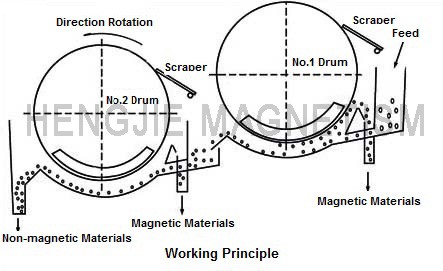

Working principle drawings:

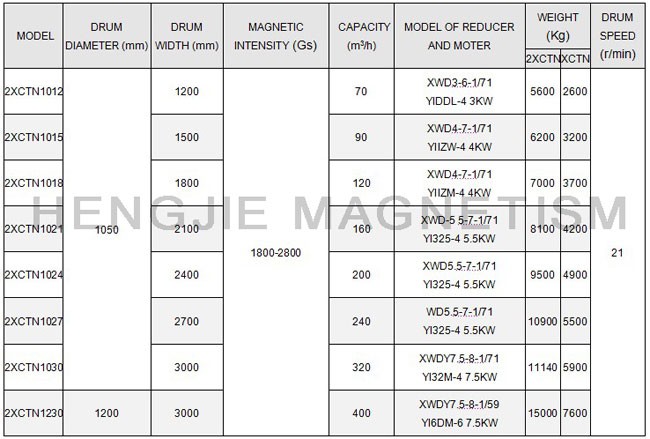

Parameter table:
