Products  The current position:Home - Products - Lifting Electromagnets

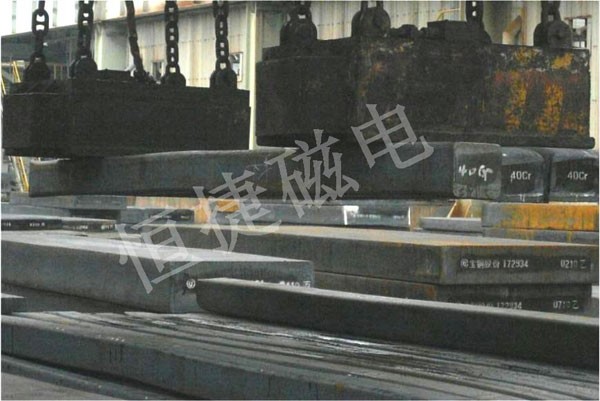

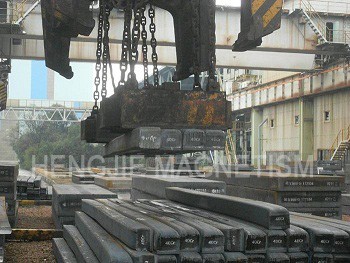

MW22 series blooming billet and girder biller use for lifting blooming billet and girder biller.
General Specifications:
-Conductor/Coil: Aluminum or Copper
-Cold Power: 8.6~9.4 kw
Hot Power: 6.83~11 kw
-Cold Current: 34~68.2 A
Hot Current: 31~59 A
-Voltage: DC 220V
-Cold Weight: 1500~6000 kg
Hot Weight: 2330~6500 kg
-Cycle Duty: TC-60%, 10 Min basis (adjustable)
-Lifting Capacity: Specified

Overall Dimension Diagram:

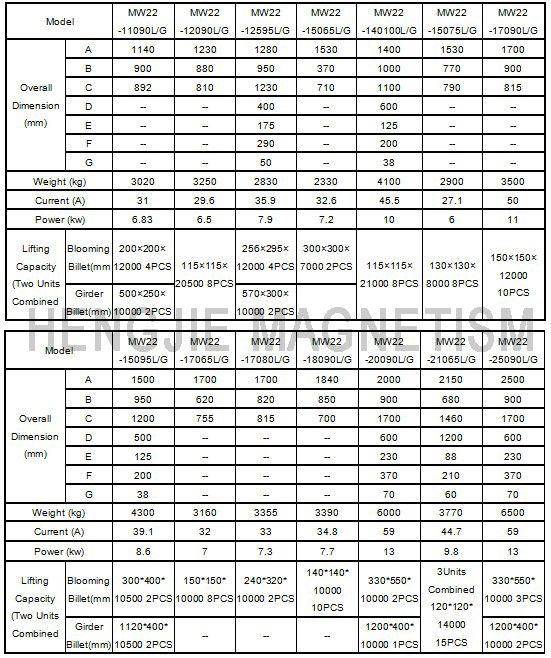

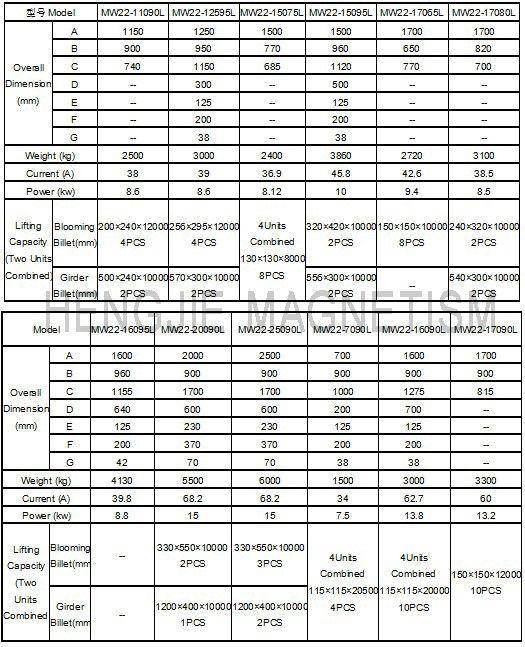

Normal Temperature Type Parameter Table:

High Temperature Type Parameter Table:
