Products  The current position:Home - Products - Lifting Electromagnets

MW04 series use for Handing Single Steel plate

Functions and Features:
- small circular magnet
- handling single thin sheet and long sheet
- used as fixture of machines
- used as electric hand grabs
General Parameters:
Voltage: DC-36~110V
Duty Cycle: 60%
Weigth (kg): 7~75
Power (kw): 0.10~0.40
Capacity
Steel Plate LxW (mm): 1200x1200~2500x2500

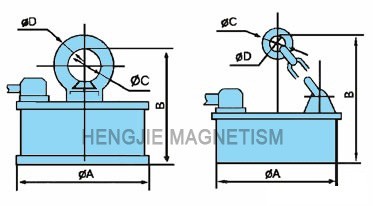

Overall Dimension Diagram:

Technical Parameter Table:
