Products  The current position:Home - Products - Lifting Electromagnets

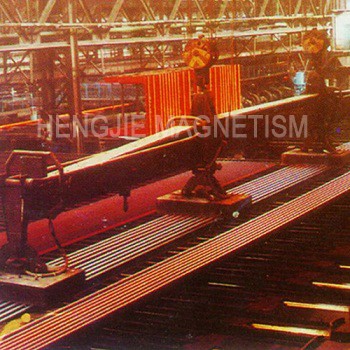

  MW42 series use for handling small square billets, rail beam and shaped steel
Features and Benefits
- strong attraction on narrow material surface
- high capacity
General Parameter
Voltage: DC-220V
Dury Cycle: TD-60%
Conductor coil: aluminum or copper
Weight kg: 1710~3230
Current A: 26.7~34.4
Power kw: 5.76~8.34
Capacity (2 units combined) T: >10
Package: Iron or plywood case

Overall Dimension Diagram:

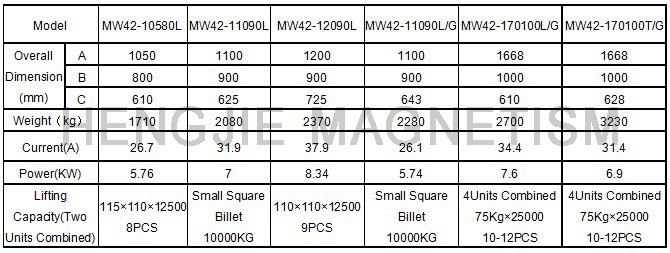

Technical Parameter Table:
