Products  The current position:Home - Products - Lifting Electromagnets

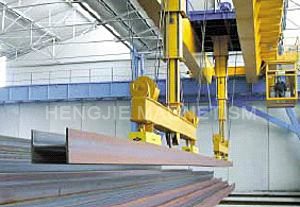

MW22 Series shaped steels Lifting Electromagnet use for handling shaped steels.

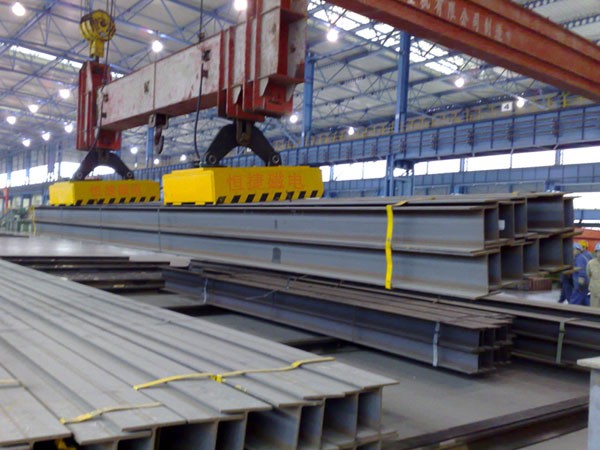

MW22 for handling H Steel
General Specifications:
-Conductor/Coil: Aluminum or Copper
-Power: 7.5~18kw
-Current: 34.1~81.9A
-Voltage: DC 220V
-Weight: 1000~ 3000 kg
-Cycle Duty: TC-60%, 10 Min basis(adjustable)
-lifting capacity(4 magnets): 5000~6000 kg

Overall Dimension Drawing:

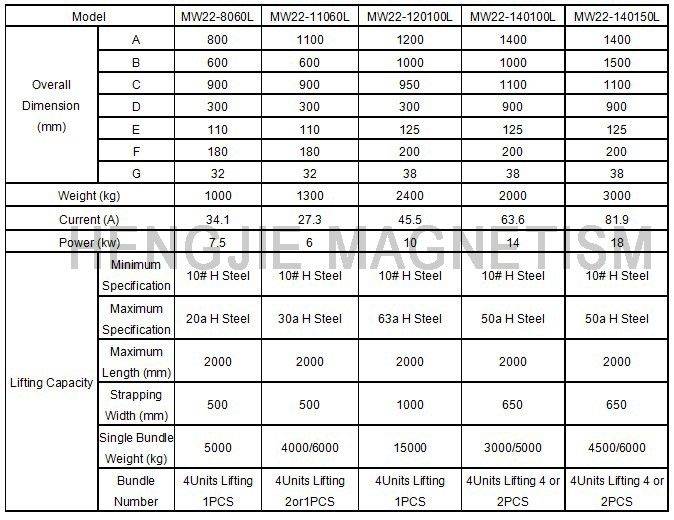

Handling H Steel Parameter Table:
