Products  The current position:Home - Products - Magnetic Drum Separators

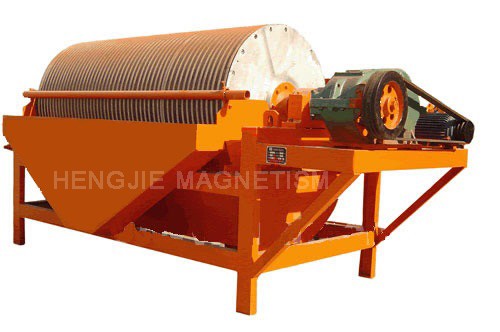

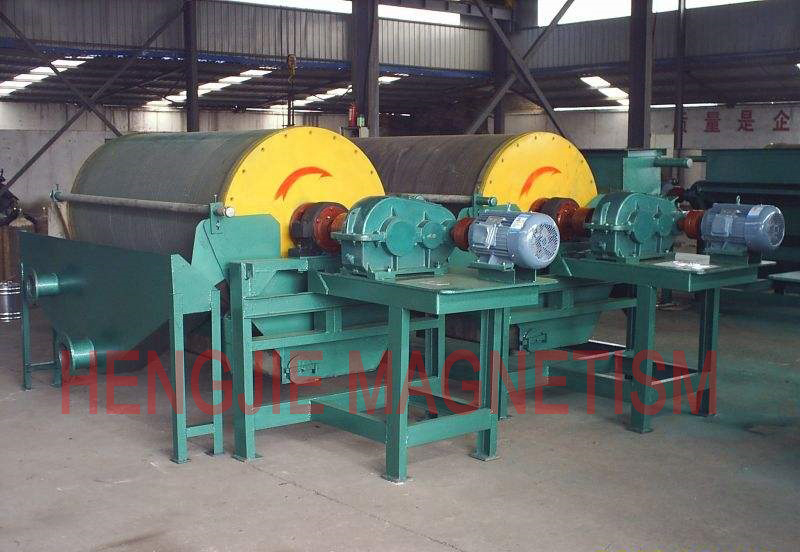

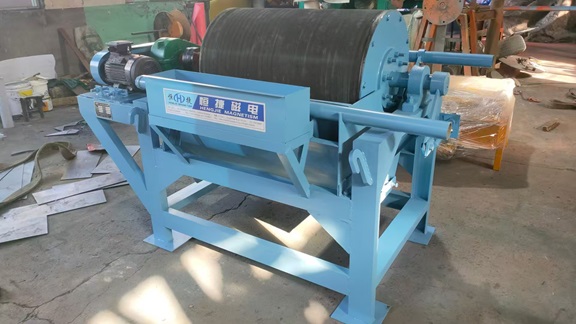

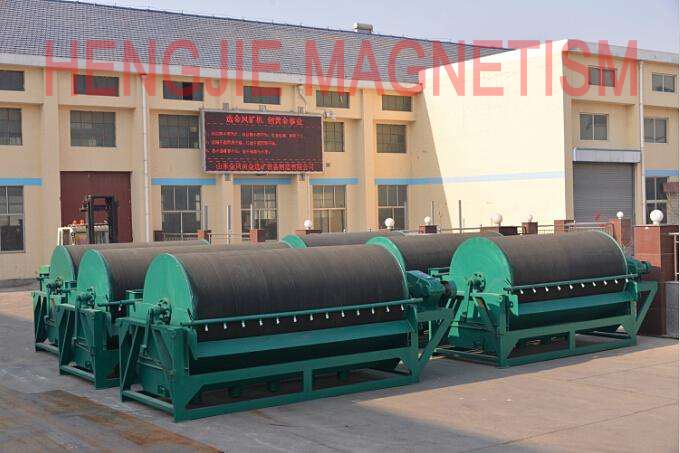

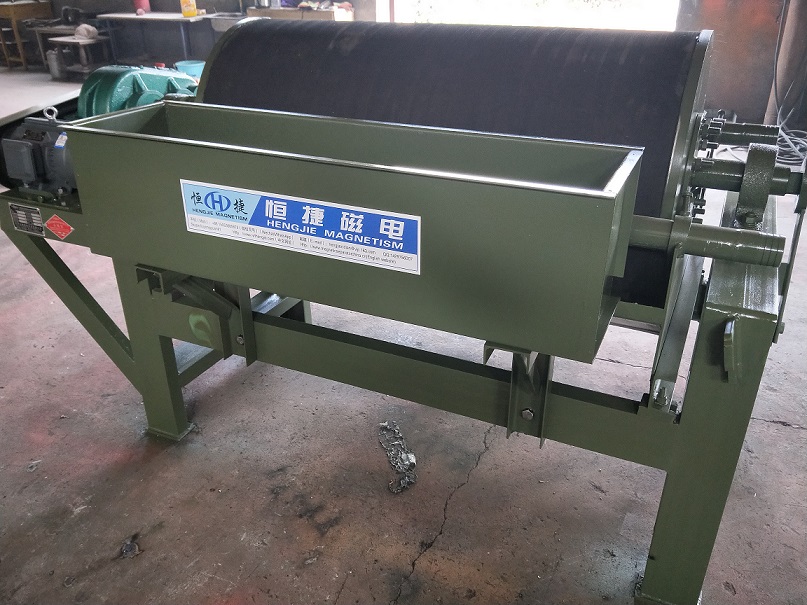

  CTB (N.S) Series Wet permanent magnetic drum separator use for obtain strong magnetic minerals, or remove the mixed ferromagnetic minerals in non-magnetic minerals. The machine can continuously feed and unload ore, have the big depth of magnetic field strength, large work space, with high processing power.
  The working principle is that when the ore pulp into the magnetic field, the strong magnetic minerals are adsorbed on the surface of the drum, the weak magnetic and non-magnetic minerals are discharged, and adsorbed strong magnetic minerals on the surface of drum rotate with the drum together, after leaving magnetic field, by the rinse water into the concentrate tank, This is the complete processing.

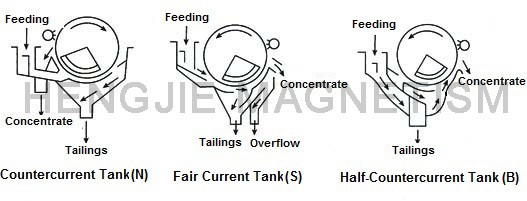

  The machine has three trough: Half countercurrent tank (CTB); Fair Current Tank (CTS) and countercurrent tank (CTN), were applied to different processing requirements.
Product features: the computer optimization design,use high magnetic coercivity and high remanence of rare earth for permanent magnet materials, ensure without reducing the magnetic force long periods work, protect the long-term interests of users, the overall structure is reliable and durable.

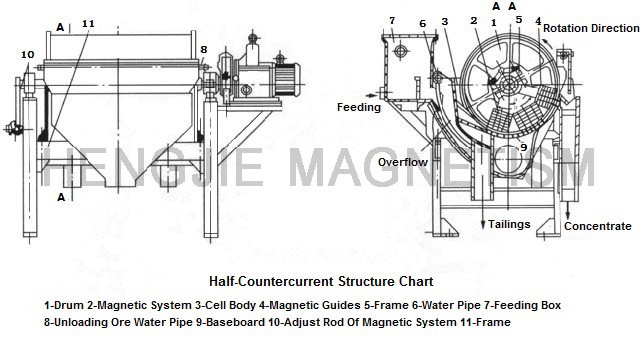

Structural drawings:

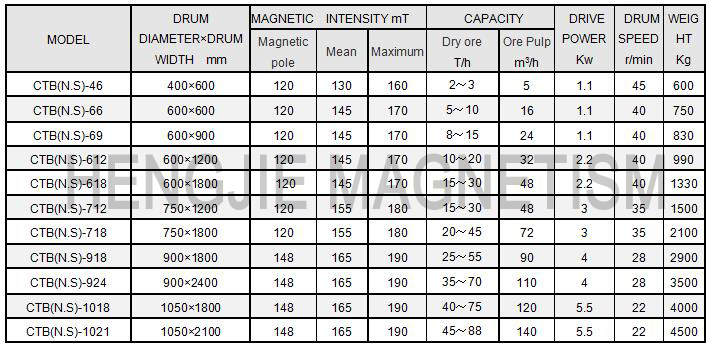

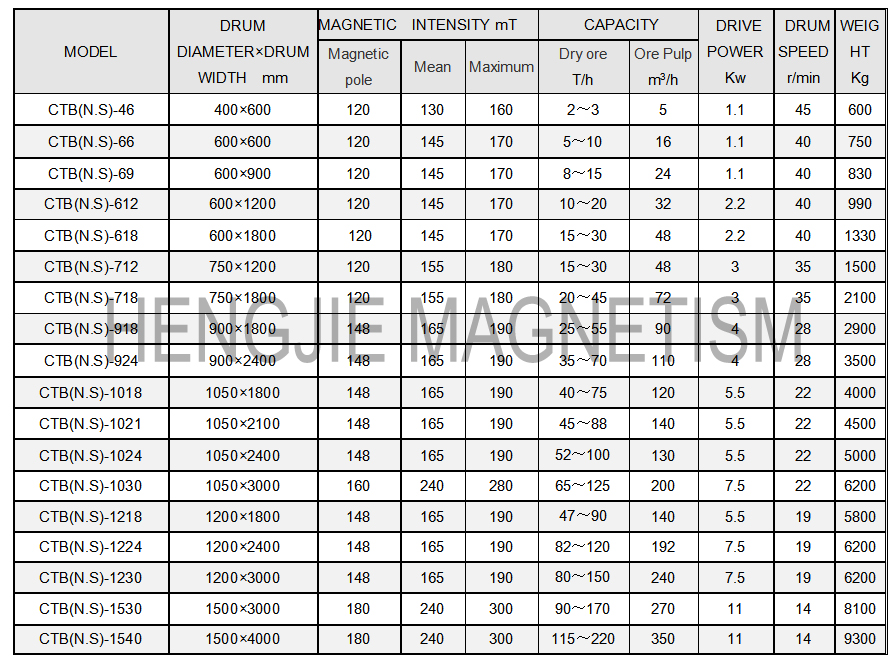

Parameter table:

REMARK:
The maximum magnetic field strength can be produed based on the different minerals,The range of the magnetic field strength from 1000GS to 6000GS.
