Products  The current position:Home - Products - Crusher and vibrating screen

Impact crusher is suitable for crushing hard materials (compressive strength not more than 350MPa), such as: granite, basalt, iron ore, manganese ore, limestone, gold ore, concrete and so on. Features is high crushing hardness, large feed size; counterattack plate and crushing hammer of gap can easily be adjusted to change discharging size, particle shape is good; compact structure, high reliability; high chromium plate hammer can impact and abrasion resistance; high crushing ratio and yield , easy maintenance, high comprehensive etc, so it is widely used in railway, highway, cement, mining, chemical, construction and other industries.

Work principle:

Impact Crusher is a broken machinery by impact energy to break the material, the motor drive the rotor to high-speed rotation, when the material into the plate hammer area, after the plate hammer impact the materials, the materials are thrown to counterattack device and broken again, another back to plate hammer area from the counterattack scaleboard and broken again, this process is repeated, that is the material impact and crushing in the first impact each other, then into the second impact area,again impact and crushing, until the material is broken to the adjusted size, discharge from the discharging outlet.

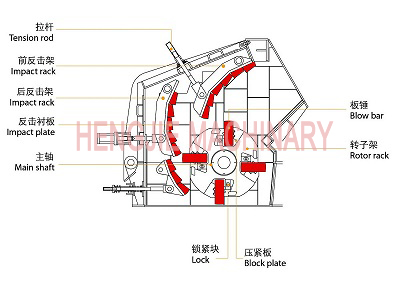

Structural diagram:

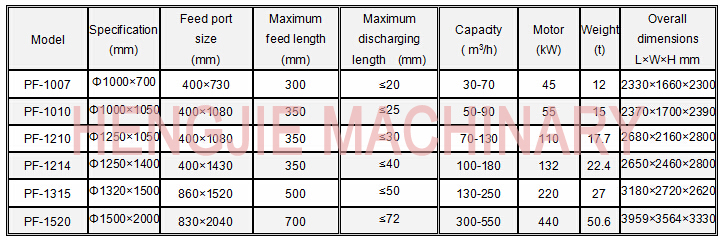

Technical parameter table:
