Products  The current position:Home - Products - Lifting Electromagnets

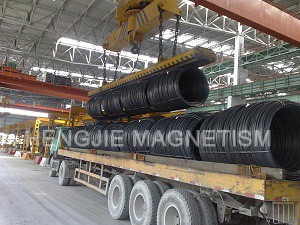

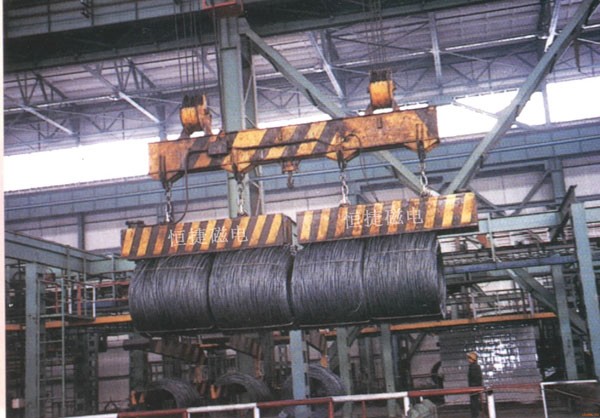

MW22 for handling wire rod

General Specifications:
-Conductor/Coil: Aluminum or Copper
-Power: 6.6~33kw
-Current: 30~150A
-Voltage: DC 220V
-Weight: 1520~7000 kg
-Cycle Duty: TC-60%, 10 Min basis(adjustable)
-lifting capacity: specified
Control System Types:Indoors, Outdoors, On-site
Internation Protection: IP20-IP54

Overall Dimension Diagram:

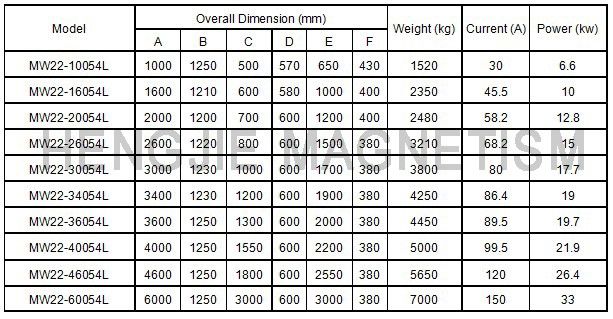

Parameter Table:
