Products  The current position:Home - Products - Magnetic Drum Separators

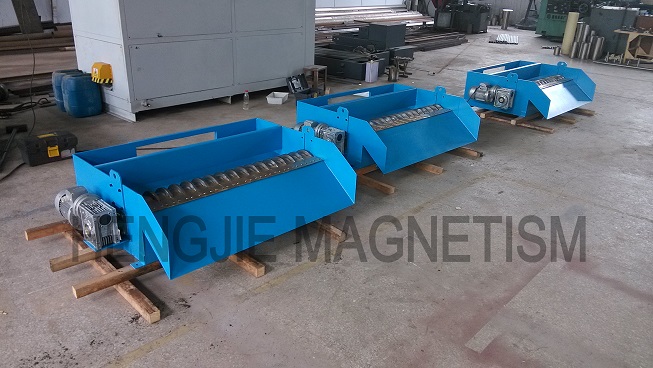

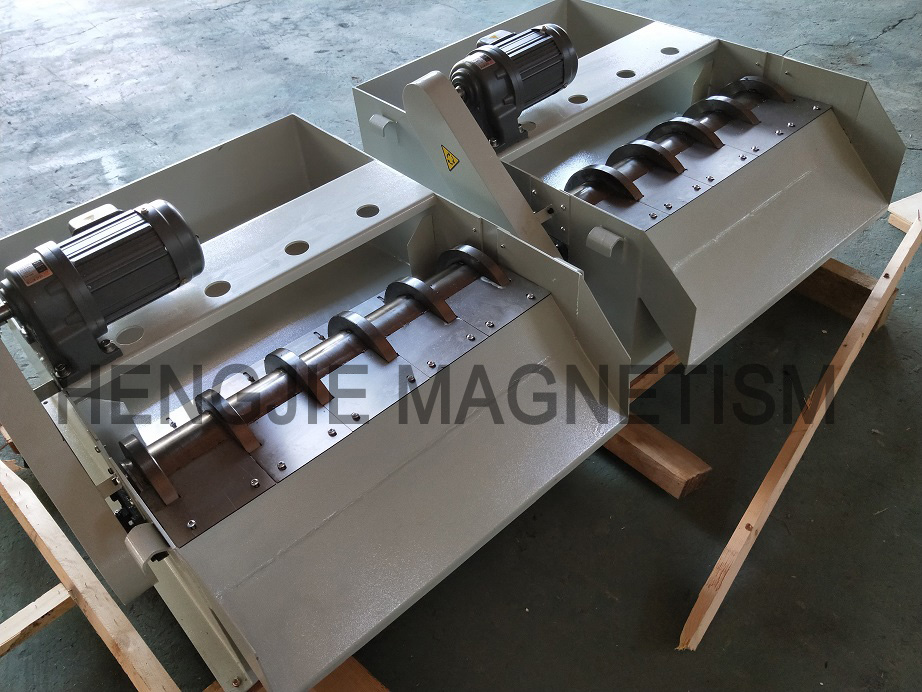

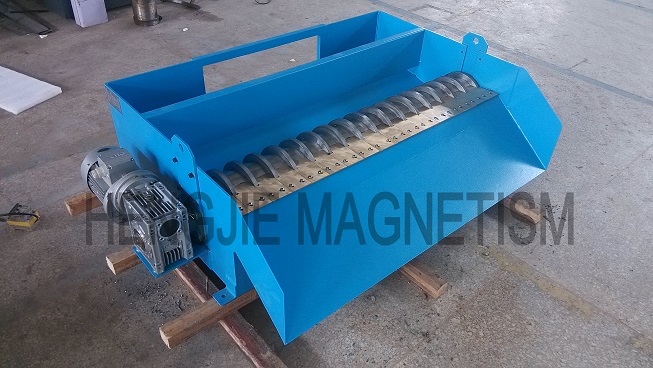

The machine is consists of motor reducer, tank, comb magnetic roller and other components. the magnetic roller is drived by motor in a circular motion, the coolant that contain granulate magnetic impurity flow into the tank, impurities are adsorbed to surface of the magnetic roller, the impurities are scraped by copper plate when the magnetic roller rotate. the scraped impurities are discharged to the sewage collection box through the guide copper plate.
Product Features:
1, The transmission system and tank separation for easy cleaning and maintenance.
2, Magnetic roller have big area, uniformly magnetized, the separated impurity is dry.
3, Simple operation, maintenance-free.

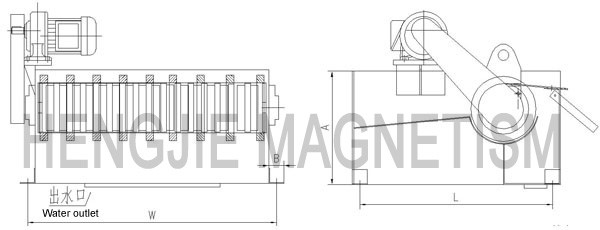

Overall dimensions:

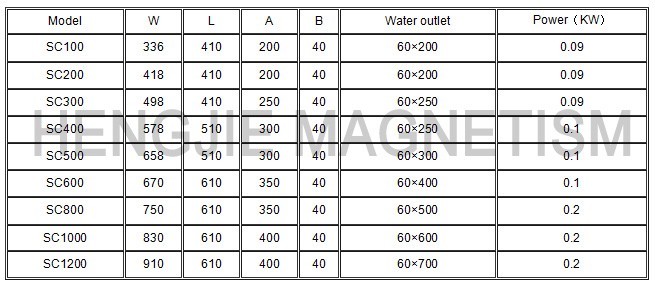

Technical parameter table:
