Products  The current position:Home - Products - Crusher and vibrating screen

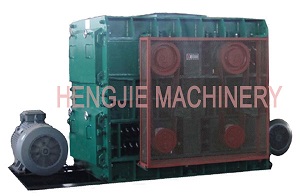

Four Toothed Roll Crusher is suitable for the hard and soft material that compressive strength less than 240Mpa, humidity less than 30%,for less powdery and more granular crushing situation,Such as: crush coal, coke, fertilizer raw materials, petroleum coke, glass, chemicals, etc., or similar to solid material crushing. This machine has a special characteristics of maintenance costs low, big crushing ratio, reliable performance, low dust, low noise etc.

Four toothed roll crusher introduction:

Four Toothed Roll Crusher configuration four crushing roller,upper two rolls is toothed roll surface, under two rolls is surfacing roll surface (or flat roll surface), applicable to production size 2-20mm of crushing operations. Such as: fluidized bed boiler and general boiler of coal crushing in thermal power industry; crushing iron ore in iron ore industry; broken fertilizer raw materials in fertilizer industry; broken waste glass in solar energy industry,or similar to the above crushing situations.
If more than 180Mpa of the material hardness heavy-type can be selected. According to user requirements there are the belt drive and coupling drive (hard links). This drive motor can be refited to diesel or gasoline machine according to user requirements.

How to work?

Four Toothed Roll Crusher crush the material by high extrusion pressure and shear forces generated the four high-strength wear-resistant rolls relative rotation, after the material into the gap of two toothed roll (V-type crushing chamber),the materials are extrusioned and sheared by two Roll relative rotation, at first crush (coarse broken), re-entering the under two counter-rotating rollers, then the materials are cut, ground by the under two rolls (fine broken ), broken to the required size, then sent by conveyor.

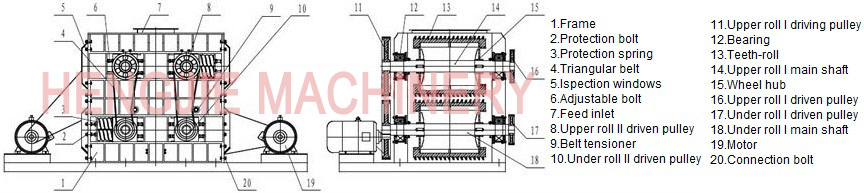

Structural drawing:

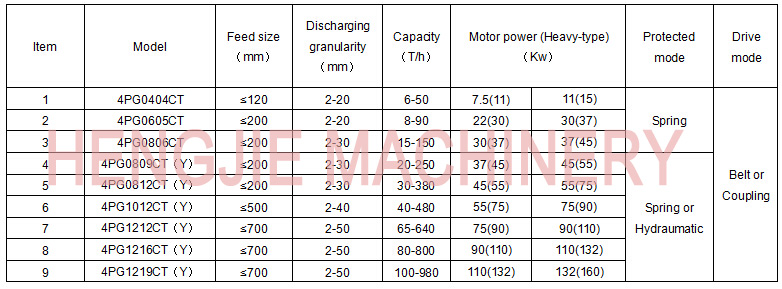

Technical parameters table:

1, Model naming (in 4PG0806CT example): 4 indicate four rolls, P indicate crusher, G indicate roller type, 08 indicate rolls diameter (800mm), 06 indicate rolls width (600mm), C indicate toothed roll surface, T(Y) indicate spring protection (hydraulic protection).
2, In parameter table, the discharging granularity range indicate size can be adjusted.
