RGT series high-frequency pulse demagnetizer is a new type of energy-efficient equipmen,in the main circuit, the demagnetization coil in and the pulse capacitor make up oscillator circuit, the CNC board alternately supply power to two SCR, to perform charging for the pulse capacitor and discharge for the LC oscillating circuit, form a sine or cosine attenuating magnetic field, so as to achieve demagnetized purposes.
RGT series pulse demagnetizer can be widely used in the following industries: magnetic separation plant classification, demagnetized before sieving and filtration, can significantly improve the screening and classification efficiency, reduce the concentrate filter cake moisture, improve beneficiation integrated indicators. Coal washing dense medium coal preparation system, the weighting agent is ferromagnetic mineral powder, after magnetization, remanence is larger, magnetic reunion is serious, settlement rate is quickly, poor stability, demagnetize magnetic media can greatly reduce the settling velocity, improve stability.

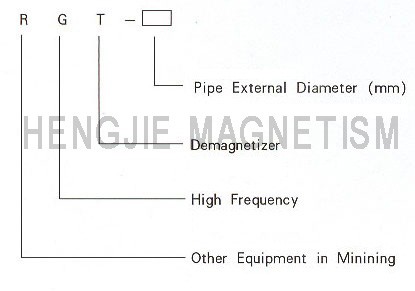

Model Description:

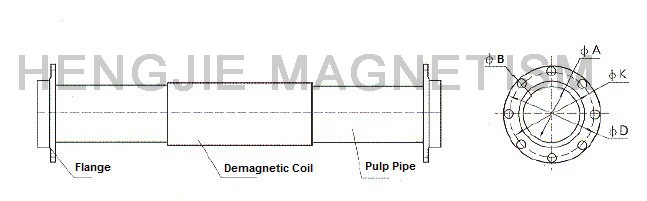

Schematic Diagram:

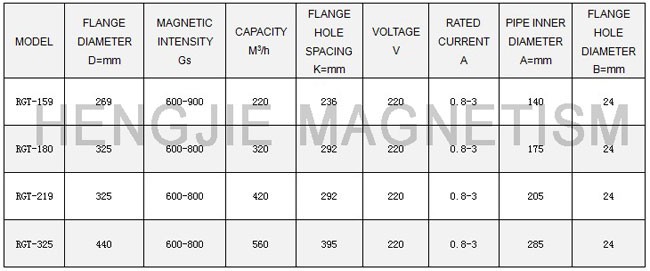

Parameter table:
