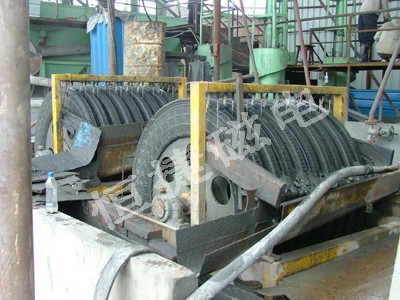

YCW Series tailings recycling machines made by the main engine, unloading ore device, concentrate slot, downspouting and frame, has five major components. The working principle is that the disk mounted inside the downspouting, the pulp flows from one end of the downspouting, through disk and disk gap, the magnetic minerals are adsorbed on the surface of the disk, and the rest of the non-magnetic minerals outflow from the other end of downspouting. The disk rotation, the adsorption of magnetic minerals to liquid level, the magnetic minerals is thrown into the concentrate slot by unloading ore device, collect output by the concentrate slot .

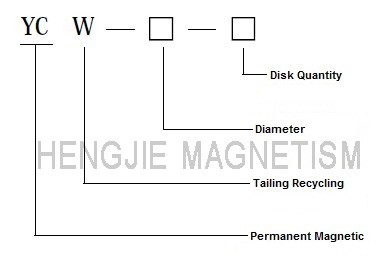

Model Description:

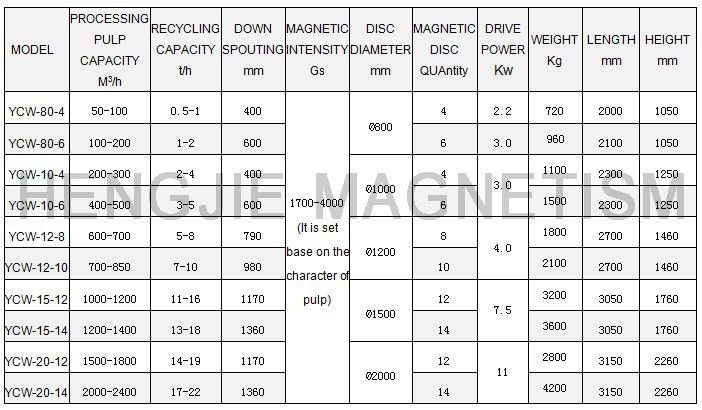

Parameter table:
