Main technical parameters
Production capacity: 2-5 tons / hr
Magnetic strength: 12000Gs
Magnetic bar specifications: Diameter32,length 300mm
Magnetic bar spacing: 32mm
Magnets Quantity: 33
Magnets Rows: 6 rows vertical arrangement
Flow into and outlet pipe diameter: 2.5 inch pipe
Application:Widely used in ceramic industry and chemical industry, food industry, flowable liquid of remove iron impurity.
Overall dimensions:
1 Stainless steel tank dimensions(304): length 1100,width 400,height 320mm
2 Bracket height :380mm
3 Machine overall imensions: L1100,W400,H700mm

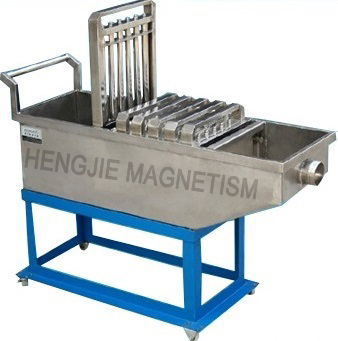

How it works:
Liquid flow into stainless steel tank from 2.5 inch pipe,then liquid flow into magnetic box through the 30mm gap under the adjustable baffle, liquid rise slowly to 250mm in front of the discharge baffle,then outflow.
Features:
A raw material slowly flow out after through 33 magnetic bar and 6 rows of vertical, super magnetic strength,to excellent effect of remove iron.
2, A row of 6 or 5 magnetic bar is taken out and clean, convenient and fast.
