Products  The current position:Home - Products - Crusher and vibrating screen

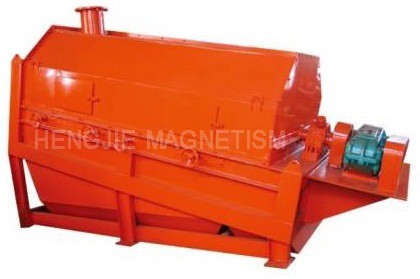

 SH Series rotary sieve particularly adapted sticky material screening, sieve hole no easy clogging. Therefore, it is widely used for coal, sand, gravel and other materials screening and classification.
Structure and working principle:
  1, The machine consist of motor, reducer, drum units, racks and other institutions, the drum unit diagonal arrangement.
  2, the electric motor connect to drum device through a reduction unit, the drive drum device around its axis. When the material into the drum device, due to the inclination and rotation of the drum, making qualified material (undersize product) is discharged through sieve hole, substandard materials (sieve product) is discharged from the end of the drum.
  3, the drum device is sealed through the body, thus ensuring the equipment in the work process, to effectively prevent dust to escape, to prevent dust pollution. Replacing the screen, simply turn on the body can be replaced.

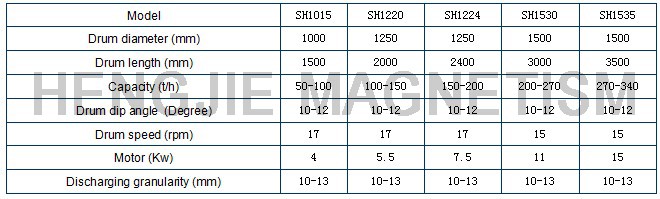

Parameter table:
