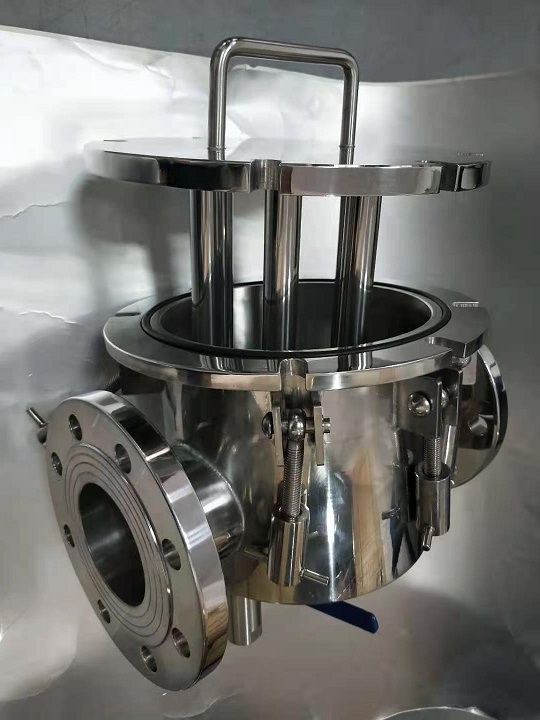

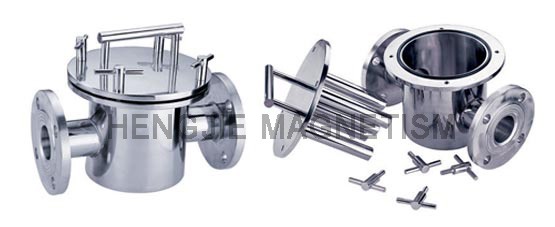

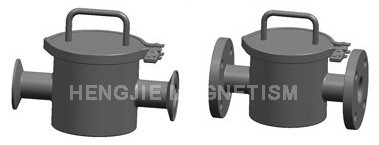

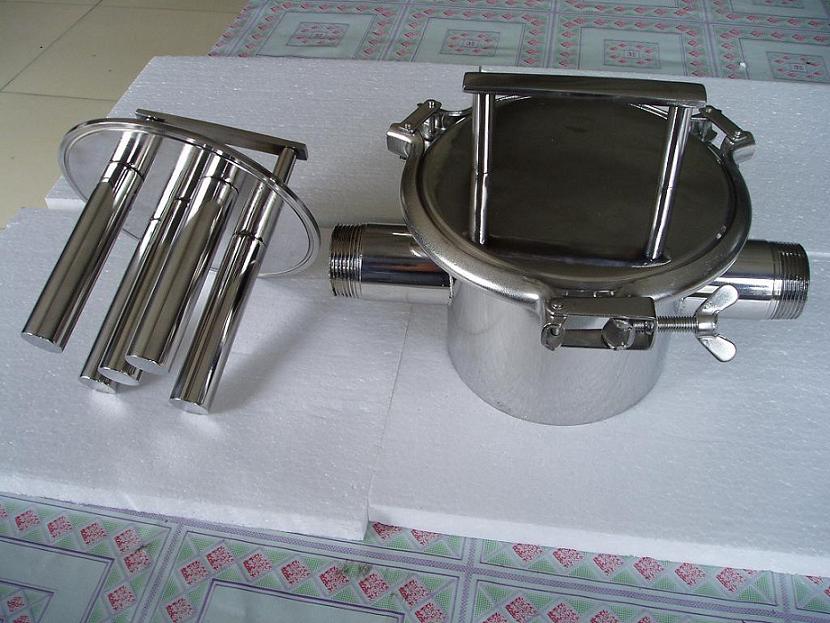

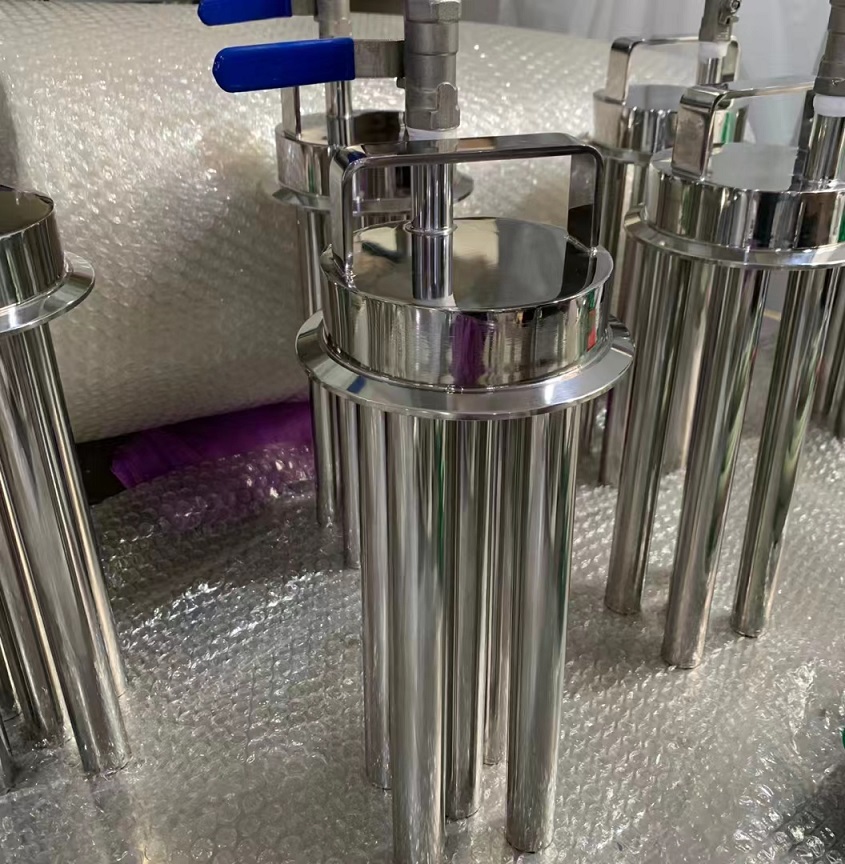

 Magnetic Liquid Traps are designed to extract the ferrous material from the liquid, semi-liquid and air conveying powder in order to purify the material in the production process. Strong magnetic tubes inside the housing filtrates the flow and picks out the unwanted ferrous metal. The unit is simply mounted to the existing pipeline via flanged or threaded ends. Easy access is also possible using the quick release clamp.

Features:
  1. Finishing: Fine polishing and well welding to meet food grade.
  2. Material of shell: SS304, SS316 and SS316L seamless steel tube
  3. Working Temperature: Standard working temperature is80, but if high temperature is required, we can offer up to 350 to meet your special applications
  4. Compress resistance: 6 kilograms (0.6Mpa) with quick release clamp while 10 kilograms (1.0Mpa) with flange.
  5. As rare earth magnets are extremely powerful and tramp metal is very difficult to remove by hand. We are ready to offer you an easy-clean design.
  6. To meet the demand of preserving heat, we offer you a special design adding insulation layer.
  7. Customer designs, specifications can be fulfilled.

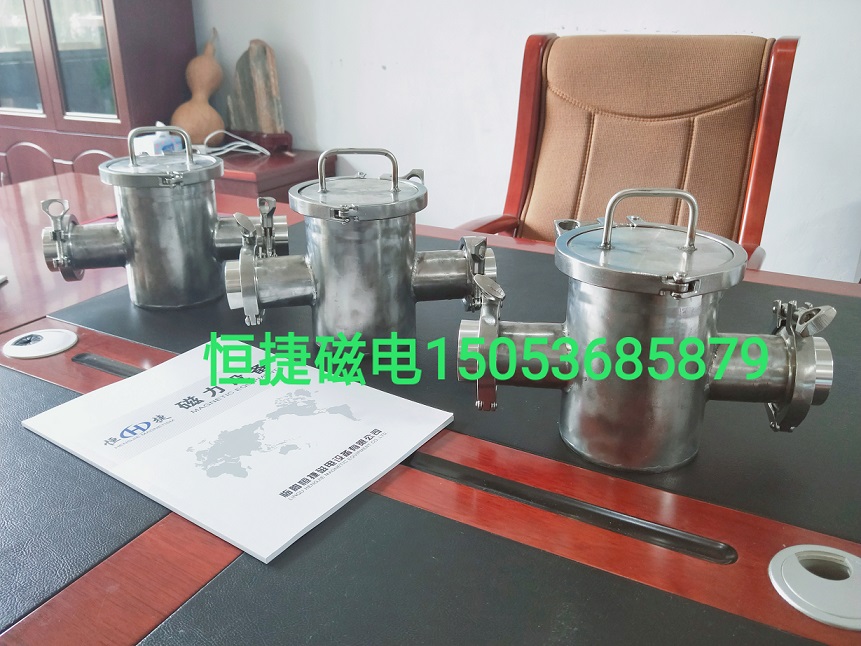

Clamp Type:

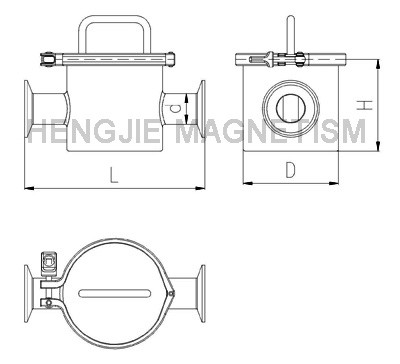

Overall Dimension Diagram:

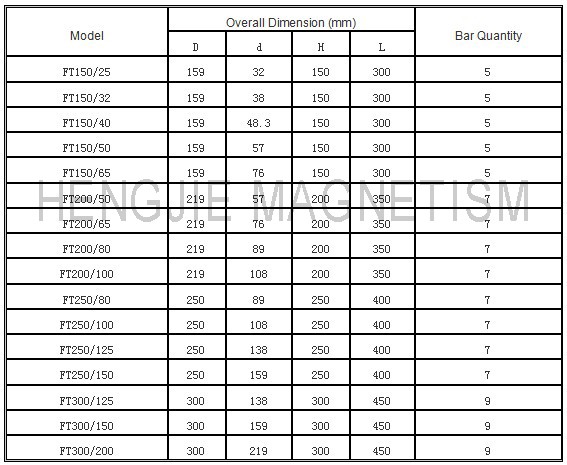

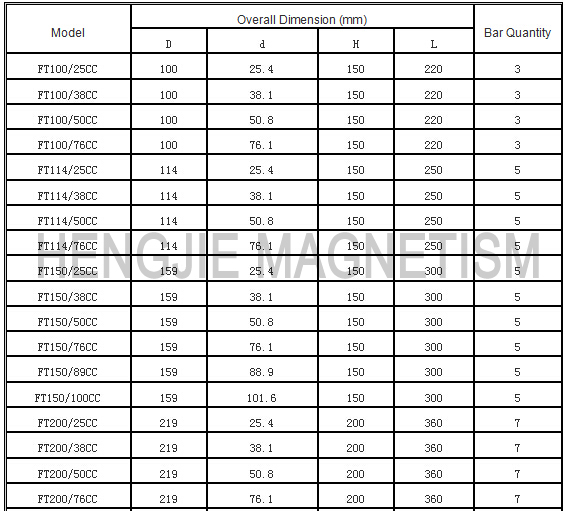

Technical Parameter Table:

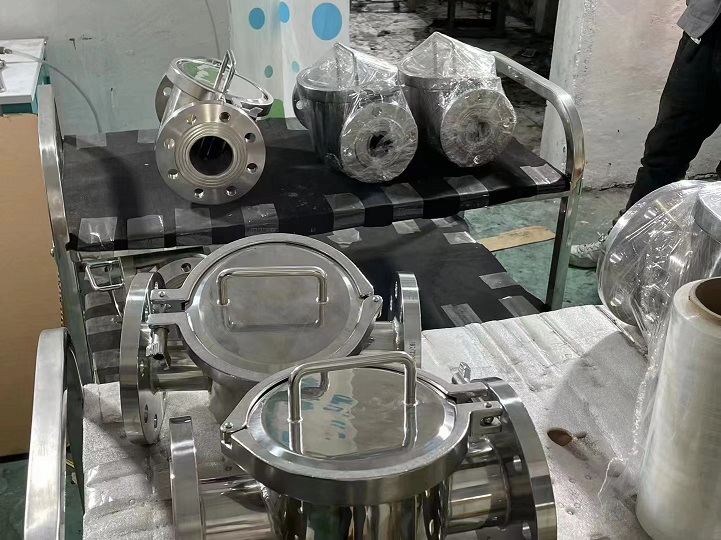

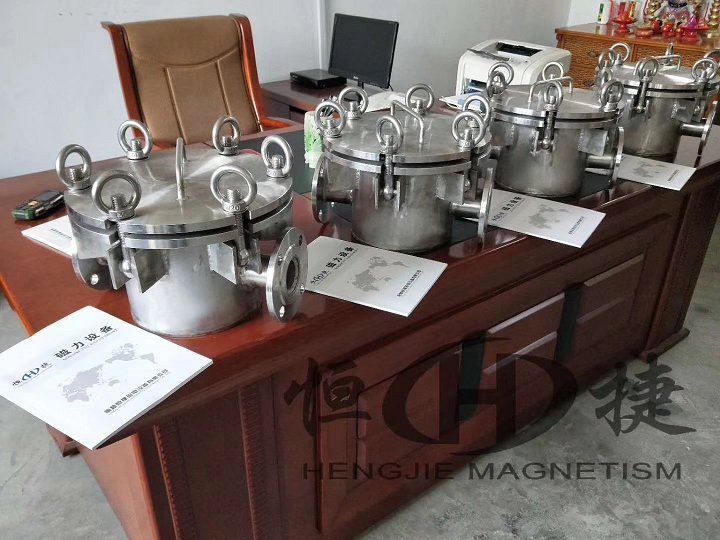

Flange Type:

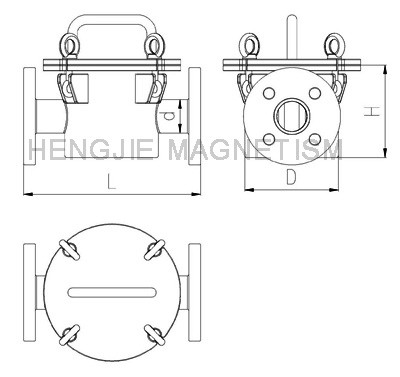

Overall Dimension Diagram:

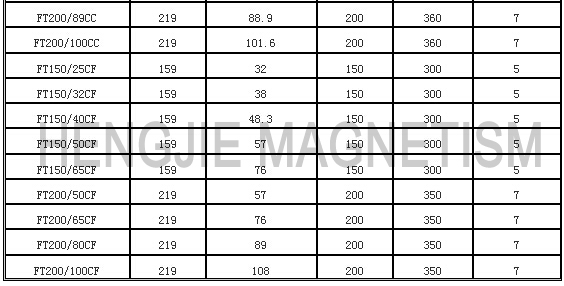

Technical Parameter Table:

Remark:
"FT" indicate magnetic liquid traps.
"CC" indicate feed port and outlet is quick release clamp type.
"CF" indicate feed port and outlet is flange type.
