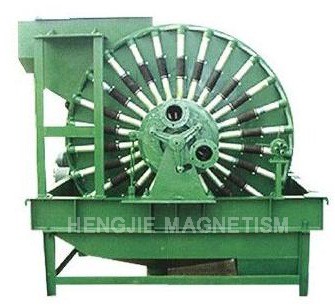

Technical feature:
  1, The machine relies on the internal magnetic system to form filter cake, the magnetic material were adsorbed on the surface of filter cloth in the magnetic and gravity, absorption speed is fast, high efficiency.
  2, Feed at the upper part, the filter cake is layered according to mineral size, the filter cake thickness and good air permeability.
  3, when the drum rotate to the dewatering zone, residual moisture in filter cake was pumping through two vacuum line, the filter cake moisture content is low.
  4, the material after dehydration,using compressed air discharge, discharge speed fast.
  5,The filter cloth is cleaned by blow air and water alternately, the compressed air will blow out the water from the inside, cleaning effectively ,prevent the cloth pore clogging.

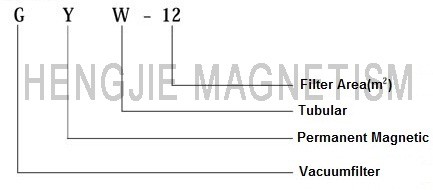

Type Description:

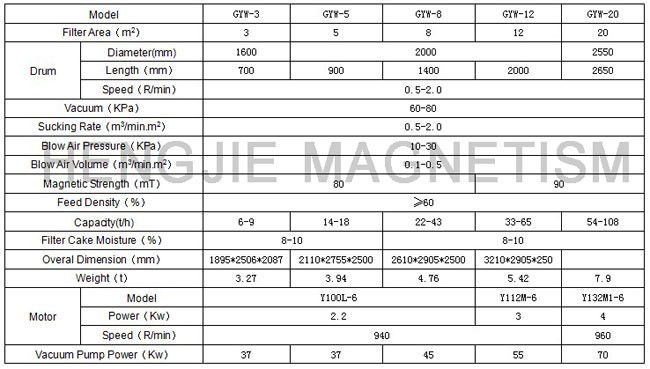

Technical Parameter Table:
