Products  The current position:Home - Products - Permanent Magnetic Separators

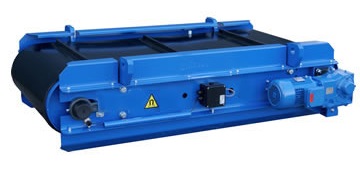

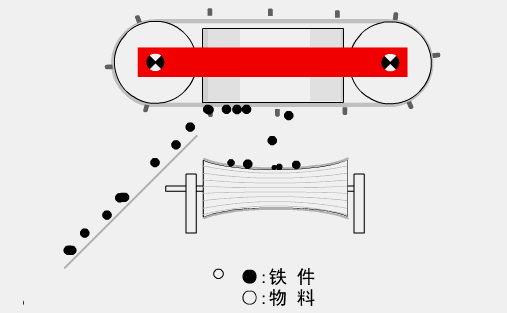

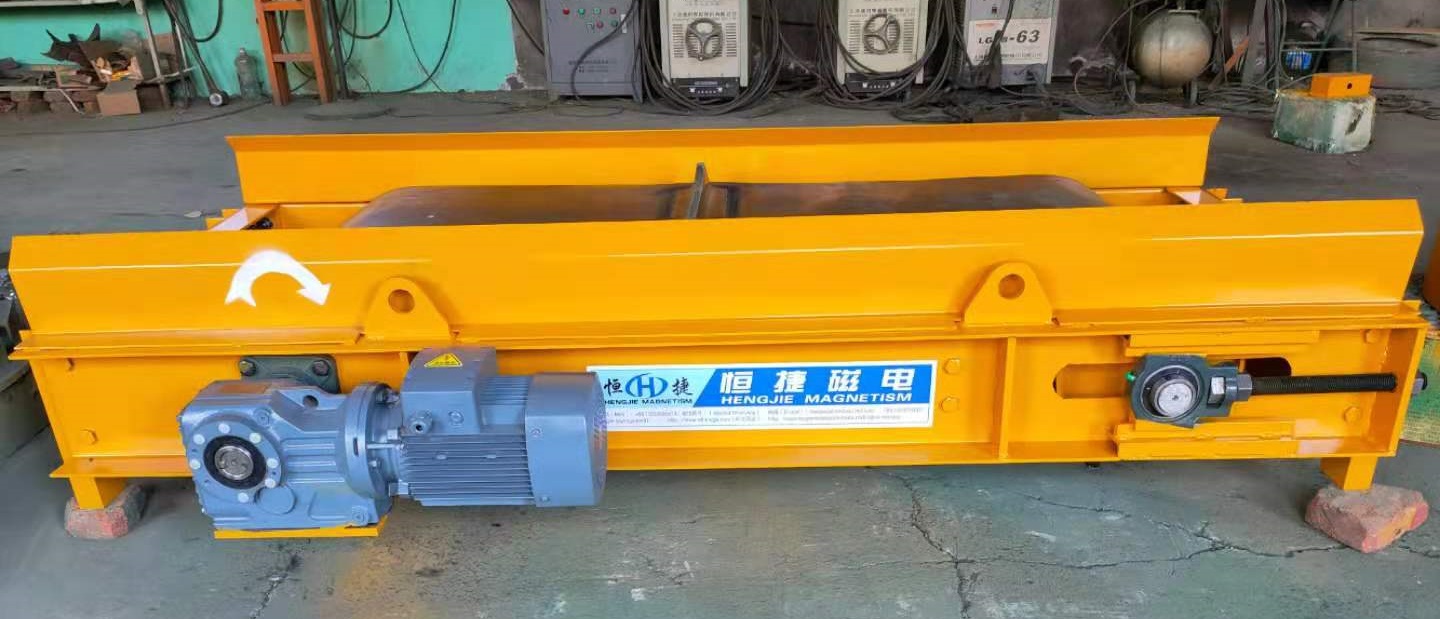

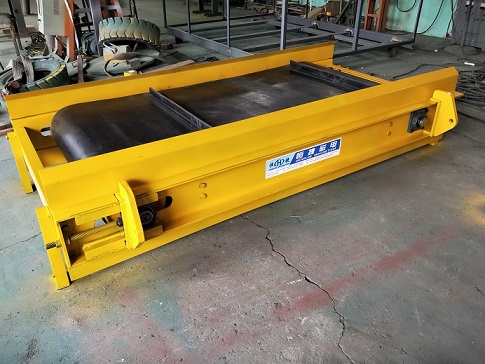

RCYE series self-cleaning permanent magnetic separator made by high-performance NdFeB rare earth, consist of permanent magnet core, unloading iron belt, reducer motor, frame, driven rollers and other parts, used for variety of conveyor to adsorb ferromagnetic material from a non-magnetic materials. It have an automatic unloading iron device, The  ferromagnetic material is automatically thrown out by unloading iron belt device, so as to achieve the purpose of the automatic unloading iron. The machine have a wide range of applications, and energy saving, easy maintenance, the failure rate is very low, stable and reliable operation in extremely harsh environment.

Product Features:
◆ Magnetic circuit design using computer simulation, perfect double pole structure.
◆ NdFeB material is magnetic source, high coercivity, high magnetic field strength.
◆ Automatic clean iron, easy maintenance, wide application.
◆ Transmission drum is a drum-type structure so that the belt can automatic correction, it is dustproof housings, mechanical failure is low.

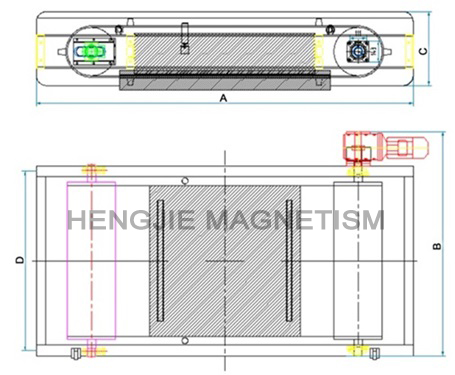

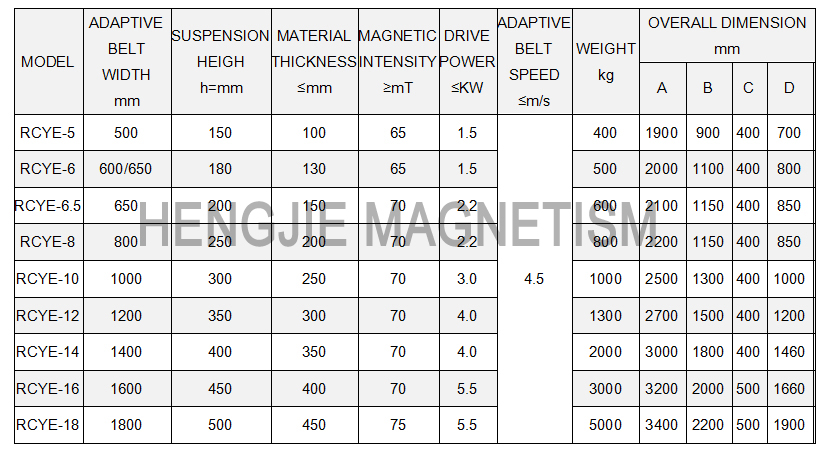

Technical parameter table:
